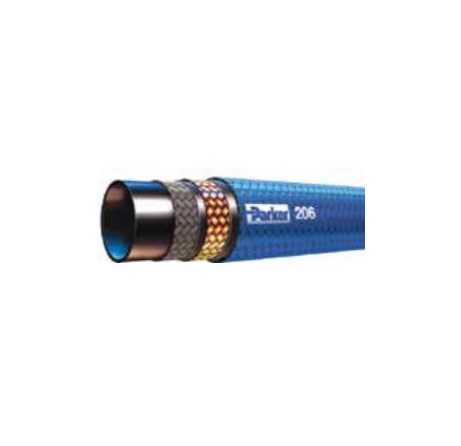

206-5 | Parker Transportation Hose
Parker’s 206 hose is a transportation hose that has a pressure range of 350-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 206 hose is designed, built, and tested to meet SAE J517 100R5 / SAE J1402 AII / DOT FMVSS 106 AIR BRAKE – AII performance specifications. Sizes range from 3/16” to 2-3/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 350-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE – AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings
Description
- Manufacturer: Parker Hannifin
- Part Number: 206-5
- Description: Transportation Hose 350- 3000 PSI- 206 Hose
- Hose I.D. (Size): -5
- Maximum Operating Pressure: 3000 psi
- Operating Temperature Range: -48 °C to 150 °C
- Specifications Met: SAE 100R5, SAE J1402 AII, D.O.T. FMVSS 106 AII-Air Brake
- Compatible Fitting: 26, 20, 22 Series
- Hose Inner Tube Material: PKR rubber
- Cover Material: Blue fiber braid
- Hose Reinforcement: One fiber braid and one steel braid
- Application: Petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions
- Picture for illustration purposes only
- Download Parker 206 Transportation Hose
