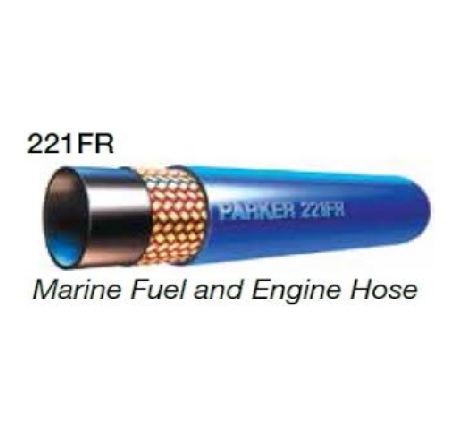

221FR-10 | Fire Resistant Marine Fuel Hose
Parker’s 221FR hose is a transportation hose used for marine fuel and engines that provides fire resistance for gasoline and fuel systems. The 221FR hose is manufactured and tested to meet many agency approvals, such as: USCG, ABS, DNV, LR, and MSHA, for reliability. Sizes range from ¼” to 7/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Marine
Features/Benefits:
• One-wire braid hose design for flexibility
• Blue, fire resistant cover for safety
• Synthetic rubber inner tube for greater fluid compatibility
• 500 PSI working pressure in all sizes
Industry Standards:
• ISO 7840 / SAE J1527 A Class I / SAE J1942
Applications:
• Gasoline
• ethanol blends
• diesel fuels
• petroleum base hydraulic fluids
• lubricating oils
Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings
Description
- Manufacturer: Parker Hannifin
- Part Number: 221FR-10
- Model: Fire Resistant Marine Fuel and Engine Hose 500 PSI- 221FR Hose
- Hose Inside Diameter: 1/2″
- Max. Working Pressure: 500 psi
- Vacuum Rating: 20″ Hg
- Mating End Fitting Series: : Parker Parkrimp Series 26 Fittings, Field Attachable 20/22 Series Fittings
- Inner Tube: Synthetic Rubber
- Reinforcement: One braid Steel wire
- Cover: Synthetic rubber, blue, MSHA accepted
- Application: Gasoline, ethanol blends, diesel fuels, petroleum base hydraulic fluid, and lubricating oils
- Specifications Met: SAE J1527 Type A Class I, USCG SAE J1942, ISO 7840, USCH H, HF, German Lloyd, Lloyds RE
- Temperature: -20˚C to +100˚C
- Picture for illustration purposes only
- Download 221FR- Transportation- Marine Fuel and Engine Hose
