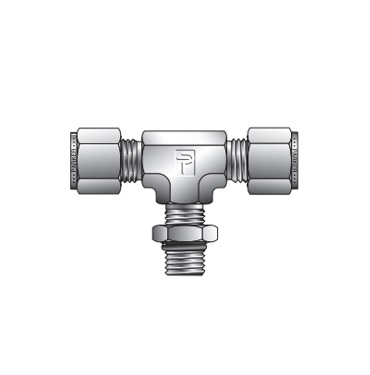

6M5BT6-316 | Male Branch Tee SAE
The Parker A-lok tube fitting is designed as a leak-free connection for the most demanding process and instrumentation applications. The A-lok tube fitting offers a two ferrule design and comes in a wide range of sizes and configurations. Available in brass, Steel, stainless Steel, and other alloys, the A-lok tube fitting seals equally well on both thin and heavy wall metal tubing.
- Two ferrule design
- Positive leak-free seal after repeated reassembly
- Sizes ranging from 1/16 inch to 1 inch O.D. tubing
- Available in 316 stainless Steel, brass, Steel and a variety of alloys
Description
- Manufacturer: Parker Hannifin
- Brand: A-LOK
- Part Number: 6M5BT6-316
- Type: Tube Fitting
- Description: Male Branch Tee SAE Straight Thread , For fractional tube
- End 1 Size (inch): 3/8
- End 1 Type: Tube O.D.
- End 2 Size (inch): 3/8
- End 2 Type: Tube O.D.
- End 3 Size (inch): 9/16-20
- End 3 Type: Straight Thread
- Material: Stainless Steel 316
- Interchange: Swagelok SS-600-3TTS, CPI 6-6-6 S5BZ-SS
- Picture for illustration purpose only
- Download datasheet for A-LOK Male Branch Tee SAE Straight Thread For Fractional Tube
