722-16 | Parker Hydraulic Hose-4000 PSI
Parker’s 722 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 4,000 PSI in all sizes. It is light, durable, and easily bent making installation easier and quicker. The 722 Hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from 3/8” to 1” in diameter with different cover options available for various markets
Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Utility Equipment
• Waste & Refuse
Features/Benefits:
• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 4,000 PSI constant working pressure in all sizes
• 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
Description
- Manufacturer: Parker Hannifin
- Part Number: 722-16
- Model: 722- GlobalCore Series
- Description: Hydraulic Constant Working Pressure Hose 4000 PSI- GlobalCore 722
- Hose Inside Diameter: 1″
- Max. Working Pressure: 4000 psi
- Min. Bend Radius: 150mm
- Mating End Fitting Series: Parkrimp 43 Series
- Hose Cover Material: Standard Cover: Synthetic Rubber, Tough Cover: High abrasion resistance MSHA approved synthetic rubber, SuperTough Cover: Synthetic rubber with a special polyethylene coating
- Hose Reinforcement Type: Four Spirals high-tensile steel wire
- Inner Tube Material: Synthetic Rubber
- Specifications Met: ISO 18752
- Application: Petroleum and water-glycol based fluids, lubricating oils, air and water. For air above 1.7 MPa, the hose cover must be pin-pricked.
- Temperature: Standard Cover: -40˚C to +100˚C, ToughCover & SuperTough: -40˚C to +125˚C
- Exception: Air – max. +70˚C, Water- max. +85˚C

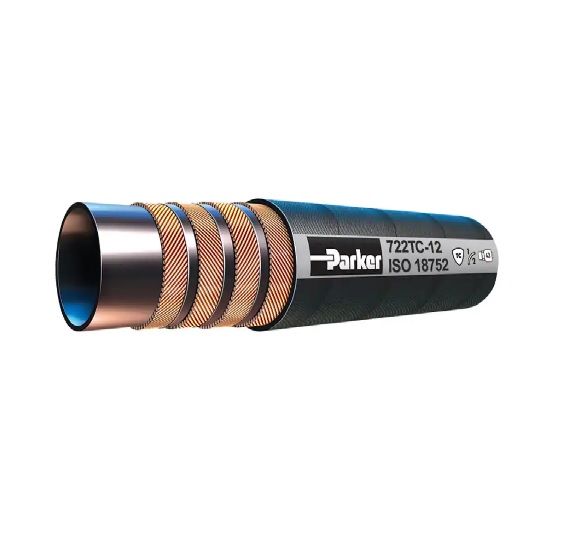

- Picture for illustration purposes only
- Download Parker 722 Series Global Core
