HP-600-3/4-Y | High Pressure Air Filter
HP & HGH SERIES High Pressure Air Filters
Features
Mikropor manufactures a line of High Performance COmpressed Air Filters, Moisture Separators in two different ranges; 50 bar range made of Aluminium. No Welding, strong and reliable design. 350 bar range made of steel. No welding and designed for reliability at very high pressure applications.
Anodised Aluminium Design with High Performance
Mikropor High Pressure Range Compressed Air Filters are NO-weld design. These Filters are built with ample wall thickness and as a result are extremely robust. In-house high pressure test facilities assure the performance. All inner and outer surfaces of 50 bar Aluminium design Filters are Anodised, where 350 bar Carbon Steel design Filters are epoxy electro powder coated.
Description
- Manufacturer: Mikropor
- Part Number: HP-600-3/4-Y
- Description: HP High Pressure Air Filters
- Connection Size: 3/4″
- Flow Rate (cfm): 250
- Flow Rate (m3/h): 425
- Maximum Working Pressure (bar): 50
- Element Part Number: M100Y
- Element Type: Oil Removal
- Particle Removal (Micron): 0.01
- Max. Oil Carryover at 21°C (mg/m3): 0.01
- Max. Working Temperature (°C): 80
- Initial Pressure Loss (mbar): 100
- Pressure Loss for Element Change (mbar): 700
- Element Color Mode: White
- Dimension A, mm: 106
- Dimension B, mm: 119
- Dimension C, mm: 30
- Dimension D, mm: 88
- Dimension E, mm: 201

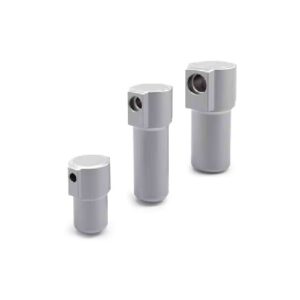

- Picture is for illustration purposes only
- Download datasheet for HP & HGH Series High Pressure Air Filters
