LCM302028 | IcountLaserCM30 with CMP

Description

The Parker icountLaserCM30 is a next generation fluid system contamination monitoring offering an under 90 seconds test procedure. Multi standard ISO 4406, NAS 1638, AS4059 & GOST cleanliness reporting, data entry and integral printing are all featured on this next generation contamination monitor.

• Manufacturer: Parker Hannifin
• Part Number: LCM302028
• Description: icountLCM30 (MTD calibration) Particle Contamination Monitor with case mounted pump (CMP) version
• Particle Size Reporting Channels: MTD >4, >6, >14, >21, >25e , >30, >38 and >70e µm. ACFTD: >2, >5, >10, >15, >20e, >25, >50 and >100e µm
• Reporting Contamination Standards: ISO 4406: Code 0 to 22, NAS 1638: 0 to 12, SAE AS 4059F Table 1: 00 to 12, SAE 4059F Table 2: 00 to 12
• Other Test Methods: IP564: determination of the level of cleanliness of aviation turbine fuel. Automatic IP564 test mode to include single flush and three repeat tests – average and individual results displayed.
• Reporting Repeatability: Measured Channels: <7% at measured counts for MTD particles size 4, 6 and 14 μm
• Calibration: MTD: Calibration in accordance with ISO 11943:Section 9. ACFTD: The LCM30 is calibrated against the Master PCM at the particle sizes shown within
  the specified limits. Consult Parker for re-calibration.
• Test Time: < 90 seconds in both single and multi-test mode.
• Test Mode: Single / Multiple – fully automated.
• Moisture Sensor: Compatible with mineral oils only. Relative Humidity (%RH) ±5% RH. Stability: +-2% RH typical at 50% RH in one year. Temperature (°C) -25 to +150°C ±0.9%
• Fluid Compatibility: Mineral oils and petroleum based fluids. For other fluids consult Parker
• Working Viscosity: 2 to 100 cSt. 2 to 200 cSt when used with LCM30 Case Mounted Pump (100 cSt when reporting in GOST standard and using Heated Bath). 2 to 500 cSt when used with Single Point Sampler. Higher viscosities when used with Trace Heated Hoses
• Environmental Temperature: +5°C to +40°C
• Fluid Temperature: +5°C to +80°C
• Working Pressure: 2.5 bar when using Case Mounted Pump; up to 420 bar when CMP not used
• Flow Rate: 30mL/min when using Case Mounted Pump; 6 – 380 l/min max. when used with System 20 Sensors, higher with Single Point Sampler
• Inlet and Outlet Fittings: M16 MINIMESS®
• Instrument External Power: 10 to 24V – 3A max.
• Trace Heated Hose (THH): 12V DC 5A max – 24V DC 2.5A max.
• Rechargable Battery: 12V / Capacity: 4.5Ah with – 12V Nom.
• Rechargeable Battery Pack: Input Voltage: 18V DC – Input Current: 2.5A; Charge Time: Typically 4.0 hours for full charge; Number of Tests: Typically 320 – 450 depending on product variant and operating conditions.
• Regional Plugs: UK (Type G) – EU (Type C) – US (Type B) – Australasia (Type I)
• Data Communication Port: USB B
• Menu Structure and Layout: Intuitive menu structure
• Case MountedPump (CMP): CMP operation via handset – Automatic CMP operation when test enabled
• Trace Heated Hose (THH): Trace Heated Hose (THH) initiated via hand set.
• Printer: Thermal printer
• Outer Mouldings: Mouldings: Structural foam ABS / Coating: Polyurethane
• Material Wetted Flow Path: Nylon with Kevlar Reinforcement Microbore Hose / Brass / Viton /
  Polyacetal (Delrin) / Zinc Plated Mild Steel / Stainless Steel 302, 303 and 316 / Soda-lime Glass
• Complete kit comes with: 1 x particle contamination monitor, 1 x rechargeable battery pack, 2 x printer paper roll ( 1 x fitted/ 1 x spare), 1 x USB cable, 1 x flash drive memory stick (inc. manual and download software), 1 x quick start guide, 1 x power supply & regional power cable

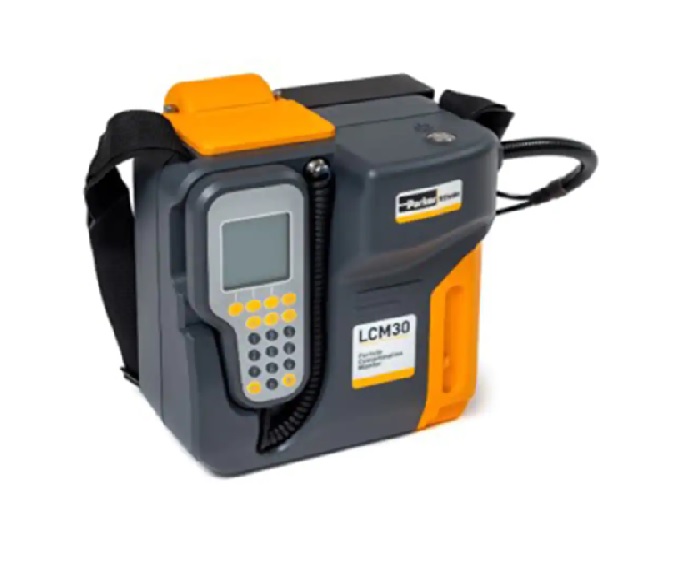

• Picture for illustration purposes only.
