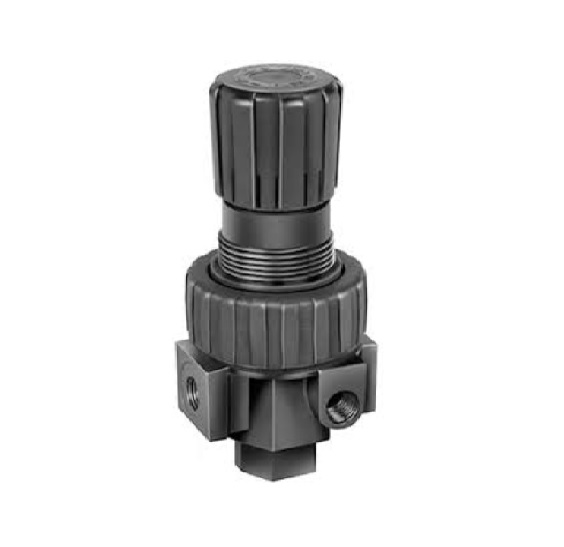

07R315AC, 07R Series Air Regulator
07R Regulators- Standard
Features
• Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation.
• Rolling diaphragm for extended life.
• Two high flow 1/4″ gauge ports can be used as additional outlets.
• Easily serviced.
• Removable non-rising knob for panel mounting and tamper resistance.
• High Flow: 1/2″ – 90 SCFM
3/4″ – 90 SCFM
Description
- Manufacturer: Parker Hannifn
- Part Number: 07R315AC
- Description: Air Regulator
- Port Connection: 1/2″ NPT
- Maximum Flow Rate: 75 CFM
- Primary Pressure Rating: 250 psig ( 17.2 bar)
- Secondary Pressure Ranges –
Standard Pressure : 2 to 125 psig (0 to 8.6 bar)
Low Pressure : 1 to 60 psig (0 to 4.1 bar)
High Pressure : 5 to 250 psig (0.4 to 17.2 bar) - Temperature Rating : 32°F to 175°F (0°C to 80°C)
Low Temperature : -4°F to 125°F (-20°C to 52°C) - Weight : 2.5 lb. (1.1 kg)
- Picture for illustration purposes only
- Download Datasheet 07R Regulator
