1025T10 00 | Fluoropolymer (FEP) Tubing
Fluoropolymer Tubing – FEP
FEP (fluorinated ethylene propylene) tubing is a robust engineering fluoropolymer
which provides excellent fluid visibility and is perfect for flow control monitoring.
Product Advantages
Flow Control:
Transparent
Flexible and non-flammable material
Resistant to nearly all chemicals and solvents
Tried-&-Tested Properties:
Excellent transmission of UV light
Low friction coefficient
Food-grade material
Low permeability
Easily weldable
Silicone-free
Applications:
Instrumentation
Food Process
UV
Gas Sampling
Chemical
Temperature Cycling
Laboratory
Description
- Manufacturer: Parker
- Part Number: 1025T10 00
- Description: Fluoropolymer (FEP) Tubing
- Tube O.D. (mm): 10
- Tube I.D. (mm): 8
- Length (m): 25
- Color: Clear
- Tubing Material: Fluorinated ethylene propylene (pure)
- Maximum Operating Pressure (bar): 0 to 28 bar
- Operating Temperature Range (°C): -40 to +150
- Vacuum Pressure Rating (mm-Hg): 755
- Bend Radius (mm): 120
- Number of Tubes: 1
- Weight: 1.693kg/package
- Media: Industrial fluids
- Specifications Met: Food>FDA: 21 CFR 177.1550, RG: 1935/2004

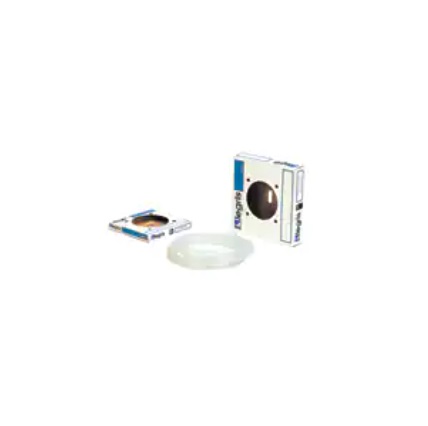

Industrial> UL94 V-0 (Fire resistance), DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 97/23/EC (PED), RG: 1907/2006 (REACH) - Picture for illustration purposes only.
- Download datasheet for Legris Fluoropolymer Tubing- FEP
