11578-16-16 | 78 Series Hose Fittings
-
-
-
- Parker 78 Series Fittings is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 78 Series Fittings has zinc dichromate plating and are used with 781, 782ST, 782TC, 78C Hose – Parker Hydraulic Spiral Hose.
-
-
Description
- Manufacturer: Parker Hannifin
- Part Number: 11578-16-16
- Fitting Series: 78 Series
- Fitting End: Crimp
- Shape: Straight
- Hose I.D.: 1″
- Flange: 1″
- Fitting Type: Code 61 Flange
- Material: Steel
- Disclaimer: The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. Refer to Fluid Connectors Safety Guide.

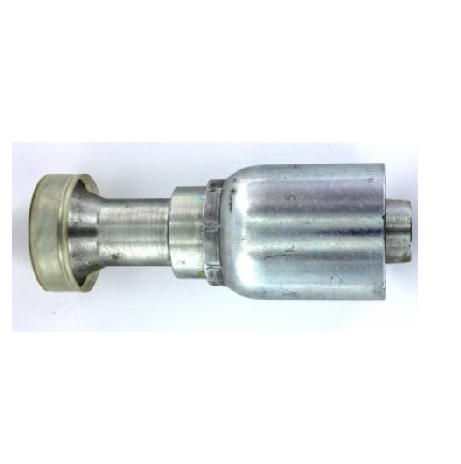

- Picture for illustration purposes only
- Download Parker 78 Series – 11578 SAE Code 61 Flange Head
