1J978-24-24 | Parker 78 Series Fittings
Parker 78 Series Fittings is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 78 Series Fittings has zinc dichromate plating and are used with 781, 782ST, 782TC, 78C Hose – Parker Hydraulic Spiral Hose.
Description
- Manufacturer: Parker Hannifin
- Part Number: 1J978-24-24
- Description: Female Seal-Lok® – Swivel – 90˚ Elbow – Short Drop- 78 Series Fittings
- Port Connection (inch): 1-1/2″
- Hose I.D. (size): -24
- Hose Inside Diameter: 1-1/2″
- Product Style: Female Seal-Lok® – Swivel
- Material: Steel
- Shape: 90˚ Elbow – Short Drop

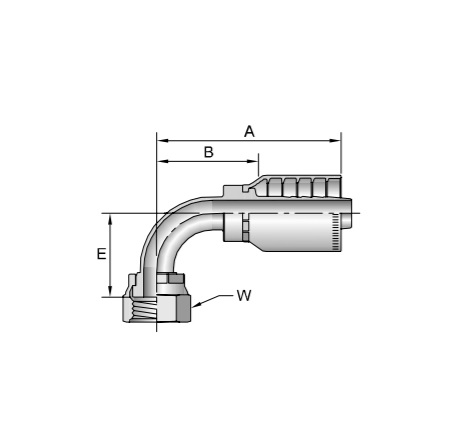

- Picture for illustration purposes only
- Download 78 Series Fittings- 1J978- Female Seal-Lok® – Swivel – 90˚ Elbow – Short Drop
