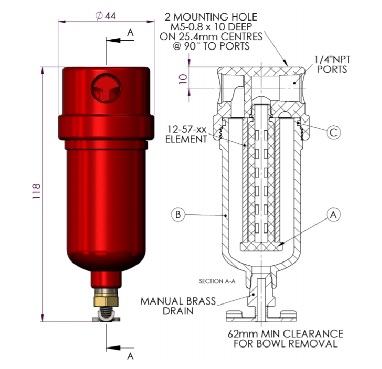

213AL | Headline Filter Aluminium Housings
Balston® Alternatives
Headline Filters are the original manufacturers of these types of filter housing and filter elements leading the way for the past 28 years.
Headline Filters can offer completely direct replacements to Balston® due to industry standards & grades, even if you have a one off housing or special requirements we can still assist you in your needs.
Headline 200 series aluminium and aluminium/ polycarbonate housings are extensively used in the applications where non-corrosive gases are filtered. Housings are available with no drains for particulate removal and with manual drains for coalescing applications.
Description
- Manufacturer: Headline Filters
- Part Number: 213AL
- Description: Aluminium/ Polycarbonate Housings
- Port Size- NPT: 1/4″
- Drain Type: 1/8″ BSPP- Manual
- Maximum Pressure (bar): 16
- Maximum Temperature (ºC): 120
- Filter Element Choice: Disposable Element- 12-57-xx/ Stainless Steel Element- SS-12-57-xx/ PTFE Element- PT-12-57-xx
- Material: Head- Anodized 6082-T6 Aluminium, Bowl-Anodized 6082-T6 Aluminium, Internal: Anodized 6082-T6 Aluminium, Standard Gasket/ O-ring- Nitrile
- Picture for illustration purposes only
- Download datasheet for HF Housing 213AL
