421SN-12 | Medium Pressure No-Skive Hose
Parker’s Medium Pressure No-Skive hoses 421SN, 421TC, 421RH and 421WC offers an extended fluid compatibility and high flexibility with an easy installation due to the thin cover construction.
Markets:
• Mobile
• Industrial
• Transportation
Features/Benefits:
• 421RH has a fire retardant cover and is Railway approved:
– European Standad EN 45545 HL2 for R22 (ingernal) and R23
(external)
• 421WC has a galvanized steel wire cover for metal and glass hot-spot resistance
• Nitrile inner tubes suitable for mineral and bio-degradable oils
• Using high quality compounds allows thin covers – small bend radii, less weight, long service life still assured
• High flexibility for easier installation and increased service life
• Parkrimp machines, portable or bench mount for easy assembly operation –hose assemblies meet CE directives
• Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly
Applications:
• Mobile and industrial medium pressure applications
• Construction
• Transportation
• Agriculture
• Forestry
• Materials Handling
• Automotive
• Machine Tool
• Injection Moulding
• Pulp and Paper
Description
- Manufacturer: Parker Hannifin
- Part Number: 421SN-12
- Model: 421SN
- Description: 421SN Medium Pressure No-Skive Hose
- Hose Inside Diameter: 3/4″
- Max. Working Pressure: 1525 psi
- Min. Burst Pressure: 6100 psi
- Min. Bend Radius: 240mm
- Mating End Fitting Series: Parkrimp 48 Series, Parkrimp 43 Series
- Hose Cover Material: Standard Cover: Synthetic Rubber
- Hose Reinforcement Type: One high- tensile steel wire braid
- Inner Tube Material: Nitrile (NBR)
- Specifications Met: EN 853 1SN – ISO 1436 Type 1 – SAE 100R1AT
- Application: Petroleum , water-glycol fluids, lubricating oils, air and water
- Temperature: -40˚C to +100˚C, Air: max. +70˚C, Water: max.

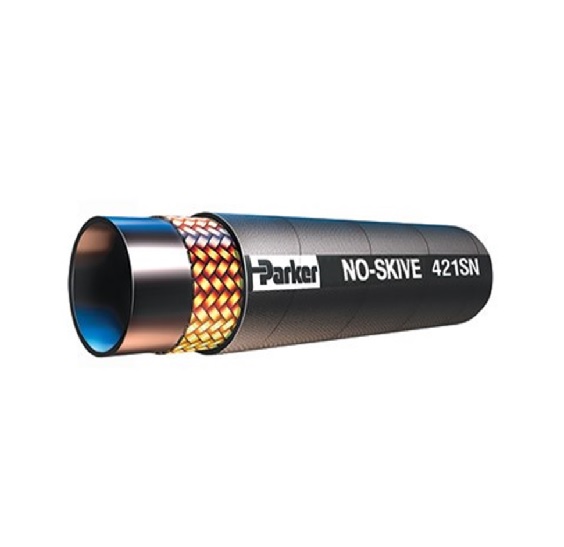

+85˚C - Picture for illustration purposes only
- Download Parker 301SN 421SN Series Hose
