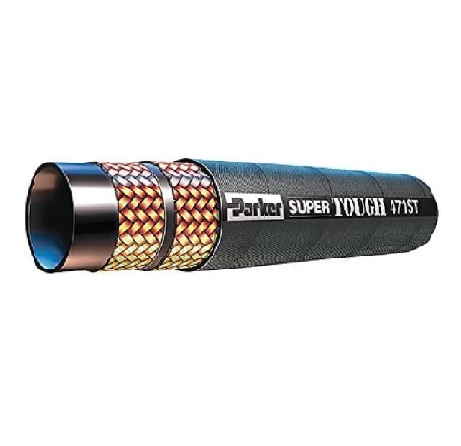

471ST-6 | 471ST High-Impulse Hoses
Parker’s 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility. The 471 hose is designed, built, and tested to meet ISO 11237 Type 2SC, SAE J1942, and EN 857 Type 2SC specifications. The two-wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs. Sizes range from ¼” to 1” in diameter with different cover options available for various markets.
Markets:
• Transportation
• Military
• Agriculture
• Forestry
• Utility Equipment
• Waste & Refuse
• Material Handling
• Industrial
Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 2500-5800 PSI working pressure in different sizes
• 2-wire braided compact construction offers more flexibility
• Smaller O.D. for ease of installation
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
Description
- Manufacturer: Parker Hannifin
- Part Number: 471ST-6
- Model: Parker 471ST High-Impulse Hoses
- Hose Inside Diameter: 3/8″
- Max. Working Pressure: 5000 psi
- Min. Burst Pressure: 20000 psi
- Min. Bend Radius: 65 mm
- Specification Met: ISO 11237-1 TYPE 2SC/ EN 857 TYPE 2SC
- Mating End Fitting Series: Parkrimp 43 Series
- Inner Tube: Synthetic Rubber
- Reinforcement: Two braids steel wire
- Cover: Supe Tough Cover: Synthetic rubber abrasion resistant,MSHA accepted
- Application: Petroleum base hydraulic fluids and lubricating oils
- Temperature: -40˚C to +100˚C
- Impulse Test: Specified- 400,000 cycles, Tested up to – 800,000 cycles.
- Picture for illustration purposes only
- Download Parker 471TC 471ST
