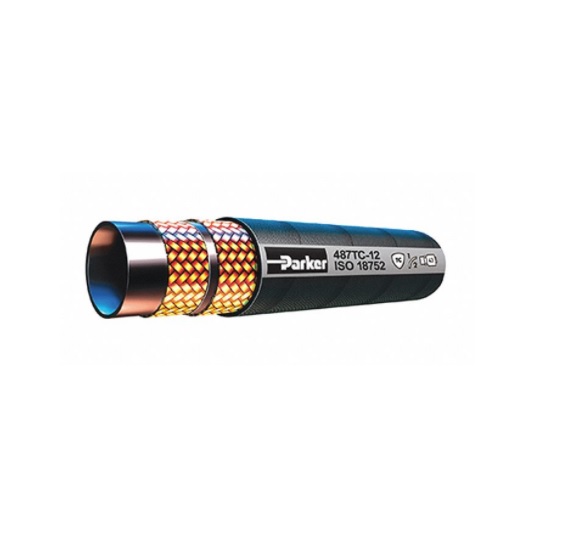

487-12 | Parker GlobalCore Hydraulic Hose

Parker’s GlobalCore 487 hose provides 4,000 psi (28 MPa) constant working pressure in all sizes. Designed for high performance, 487 is available in a variety of cover options, including Standard, ToughCover and SuperTough. Its synthetic rubber inner tube provides a wider range of fluid compatibility. Rated to the ISO 18752 performance specification, 487 will excel in multiple applications around the world.
• ½ ISO 18752 minimum bend radius
• Low force to flex for ease of installation
• 4,000 psi constant working pressure in all sizes
• Exceeds ISO 18752 performance specification (AC, BC & CC)
• TC cover provides 80 times the abrasion resistance compared to Standard rubber cover hose
• ST cover provides 450 times the abrasion resistance compared to Standard rubber cover hose

Application: Petroleum base hydraulic fluids and lubricating oils
Inner Tube: Synthetic rubber
Reinforcement: One- or two-braid steel wire for sizes -4 to -12, Four-spiral wires for sizes -16 to -24, Six-spiral wires for size -32
Cover: Standard Cover: Synthetic rubber
ToughCover: Synthetic rubber abrasion resistant
SuperTough: Synthetic rubber super abrasion resistant
Fittings: 43 Series, sizes -4 to -16, 77 Series, sizes -20 to -32
Temp. Range: Standard Cover: -40˚F to +212˚F (-40˚C to +100˚C),  ToughCover & SuperTough: -40˚F to +257˚F (-40˚C to +125˚C)
