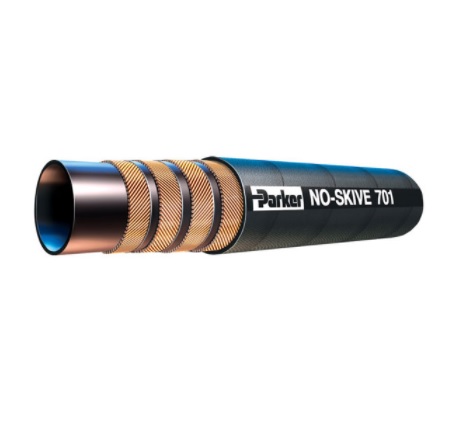

701-6 | Parker Hydraulic Hose

Parker’s High Pressure No-Skive hoses 701 and 701TC are the preferred hoses for general high pressure hydraulic applications. The hoses are designed with a No-Skive construction and are suitable for a working pressure up to 45,0 MPa. Based on the advanced materials the hose type 701TC is highly abrasion resistant. The Parker High Pressure hose range is complemented by a full selection of compatible No-Skive fittings in steel and stainless steel.

Markets:
• Construction Equipment
• Injection Moulding
• Forestry and Agriculture
• Materials Handling
• Pulp and Paper

Features/Benefits:
• Reinforcement of four spirals high-tensile steel wire – according to ISO 3862 – EN 856 Type 4SP.
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
• The hose type 701TC has a tough cover (TC) and is therefore ideal for applications where high abrasion resistance is required. Tough cover 80 x greater abrasion resistance than standard rubber cover hoses.
• 701TC is also MSHA approved and suitable for temporary immersion in mineral oil up to 70 °C with frequent inspections.
• Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly.

Applications:
• General high pressure hydraulic applications

Parker’s High Pressures Hoses 701 and 701TC are compatible with the Parker Parkrimp medium pressure fitting series 70.
