811-48 | Suction and Return Hose
Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 811 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• 62-300 PSI working pressure in different sizes
• Half SAE bend radius for ease of installation and low force to flex
• SAE J517 100R4 / SAE J1942 Performance Specifications
• Oil and weather-resistant synthetic rubber cover
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 81 series fittings (for -12 to -32)
• 88 series fittings (for -12 to -40)
Description
- Manufacturer: Parker Hannifin
- Part Number: 811-48
- Model: 811
- Description: No-Skive Suction and Return Line SAE 100R4
- Hose Inside Diameter: 3″
- Max. Working Pressure: 62 psi
- Min. Burst Pressure: 248 psi
- Vacuum Rating, inches of Hg: 25
- Min. Bend Radius: 230mm
- Hose Cover Material: Standard Cover: Synthetic Rubber, oil and weather resistant
- Hose Reinforcement Type: Two fibre spiral, one helical wire
- Inner Tube Material: Synthetic rubber
- Compatible Fitting Series: Parkrimp 81 Series- size up to-32, Field Attachable 88 Series
- Specifications Met: SAE 100R4, J1942/ USCG HF
- Application: Hydraulic fluid on mineral-oil basis, water-glycol and lubricating oils, air and water
- Temperature: -40˚C to +100˚C
- Exception: Air- max. +70˚C, Water- max.+85˚C

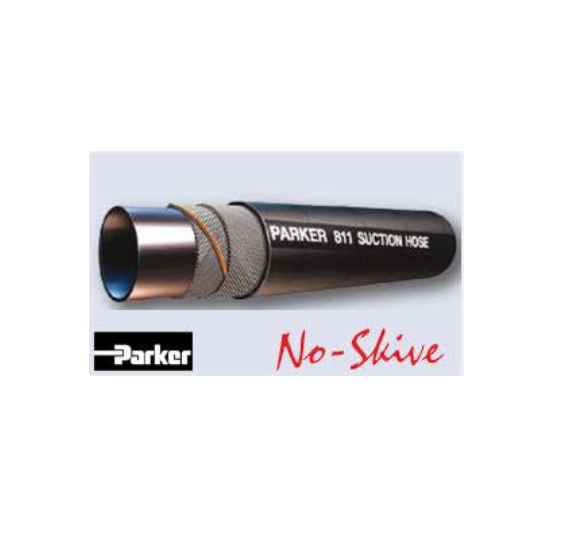

- Picture for illustration purposes only
- Download Parker 811 Series Hose
