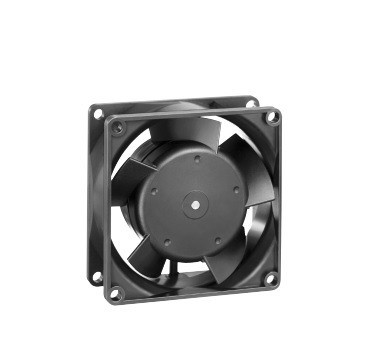

8314U | DC Axial Fan
ebm-papst axial fans are suitable for high air performance with medium pressure increase. The air flows through the fan blades in parallel with the axis of rotation. ebm-papst can supply a wide range of AC and DC fans: from 25 to 280 mm with an extremely shallow design thanks to space-saving integration of the motor.
Description
- Part Number: 8314U
- Brand: Ebm-Papst
- Description: DC Axial Fan
- Nominal Voltage, VDC: 24
- Nominal Voltage Range: 12…31.5
- Speed (rpm): 3300
- Power Consumption, W: 2.7
- Ambient Temperature Range: -20°C to 75°C
- Air Flow, m3/h: 31,8
- Sound Power Level, B: 5.2
- Sound Pressure Level, dB(A): 34
- Material: Housing- Glass-fiber reinforced PBT plastic, Impeller- Glass-fiber reinforced PA plastic, Cable- Leads AWG 22, TR64, stripped and tin-plated
- Dimensions: 80 x 80 x 32 mm
- Weight: 0.210 kg
- Picture for illustration purposes only
- Download datasheet for Ebm-Papst 8314U DC axial fan
