DSH161CRSPD024D- DSH161 Series Valve
DSH161CRSPD024D: 2-Way Poppet Valves
Features
• Replaceable, one piece encapsulated coils with minimal amperage draw
• Various coil terminations and voltages
• Various manual override options
• All external parts zinc plated
• New 350 Bar (5000 PSI) rating
Description
- Manufacturer: Parker Hannifin
- Part Number: DSH161CRSPD024D
- Description: 2-Way Poppet Valves, Cartridge only
- Rated Flow: 150 LPM
- Maximum Pressure Setting: 350 Bar
- Leakage at 32 cSt: 5 drops/min
- Minimum Operating Voltage: 85% of rated voltage at 20degC
- Cartridge Material: All parts steel . All operating parts harded steel.
- Operating Temperature Range/ Seals: -40degC to +93.3degC (Nitrile)
- Fuid Compatibility/Viscosity: Mineral-based or synthetic with lubricating properties at viscosities of 6 to 420 cSt
- Filtration: ISO Code 16/13
- Approx. Weight: 0.34 kg

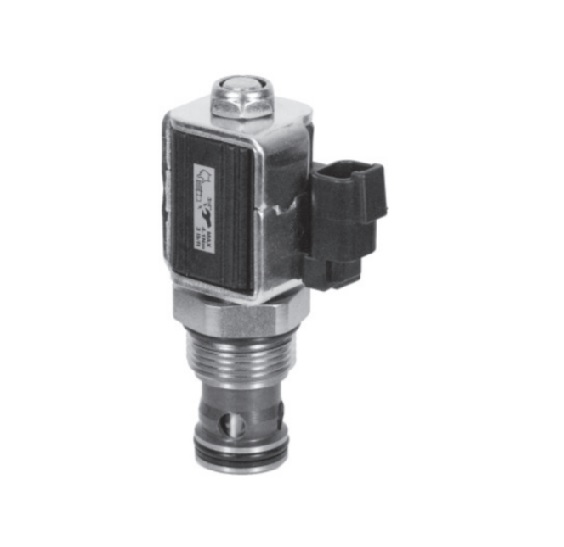

- Picture for illustration purposes only
- Download Datasheet_dsh161
