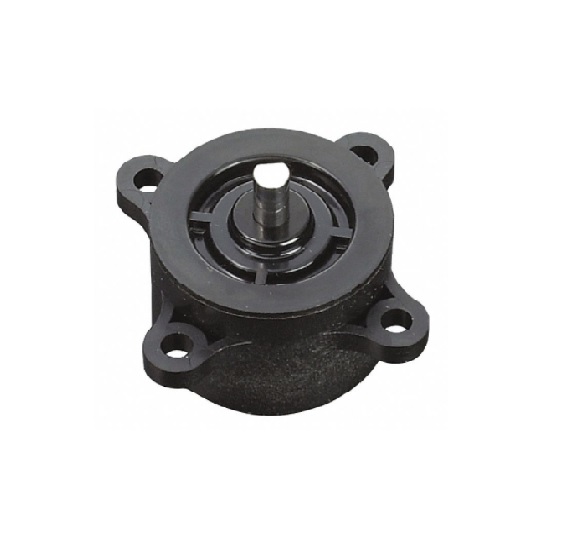

FRT-K2-103 | Rotary Dampers
Rotary Dampers
FRT-K2-103
For very long service life extension
Continuous Rotation
Damping torque 100 +/- 20 Ncm
The damping direction of FRT F2/K2 and FRN-F2/K2 is either the right, left or two-sided rotation. With a damping torque of up to 400 Ncm, this product family can even handle heavy components. These ACE rotary dampers can decelerate directly in the pivot point or linear through a gear and gear rack. They are maintenance-free and ready-to-install.
Description
- Manufacturer: Parker Hannifin
- Part Number: FRT-K2-103
- Damping Torque: 100 +/-20 Ncm
- Damping Direction: Bidirection
- Construction Size: Ø 40 mm
- Rotational Speed Maximum: 50 rpm
- Lifetime: 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.
- Operating Temperature Range: 0 degC to 50 degC
- Material: outer body: plastic, shaft: steel
- Mounting: in any position
- Mounting Information: No axial or radial forces may be induced via the shaft
- Safety Information: Do not use rotary dampers as supports. Provide an external guide or support
- Weight: 0.08 kg
- Picture for illustration purposes only
- Download Datasheet Rotary Damper FRT Series
