PLK-C10 | Pneumatic Logic Control Valves
Product Details
OR Module
All logic units require mounting on a separate 2 or 3 port base, available separately. Logic units have an input (green) and output (red) pressure indicator to show the state of the respective signal. Units are supplied with two captive screws for mounting on all types of base and sealing o-rings are in the bottom of each unit.
Logic Systems
Logic units are best thought of as miniature valves, whose purpose is to influence the behaviour of larger power valves. They achieve this by producing and receiving output and input signals, using the common air supply. In this way, they are able to monitor and control a whole sequence of operations with great accuracy and repeatability.
Description
- Manufacturer: Parker Hannifin
- Part Number: PLK-C10
- Maximum Operating Pressure: 8 bar
- Minimum Operating Pressure: 3 bar
- Maximum Operating Temperature: +60 degC
- Minimum Operating Temperature: -15 degC
- Logic Function: OR

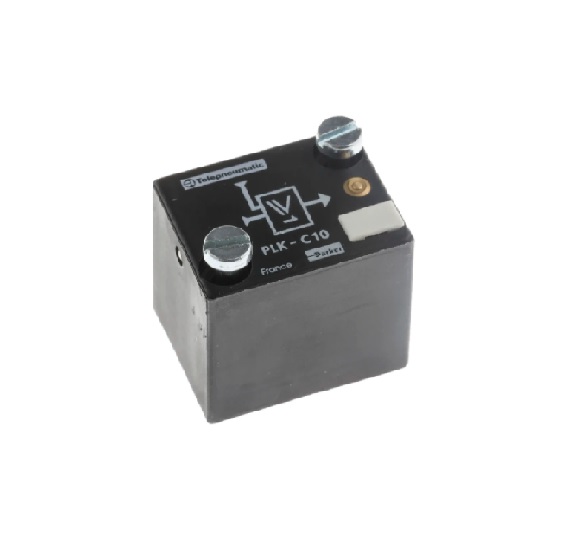

- Picture for illustration purposes only
- Download Datasheet Logic Processing
