Reducing Bushing, 1-5/16 MSAE- 1-1/16-FSAE

Description

• Manufacturer: HKM-LOK
• Part Number: SS-RBP-ST21-US17
• Description:Reducing Bushing
• Thread Type: Male SAE/MS Straight Threads to Female SAE/MS Straight Threads
• P-SAE/MS Thread Size: 1-1/16-12
• Px-SAE/MS Thread Size: 1-1/16-12
• Material: Stainless Steel 316
• Working Pressure, psig (bar): 2900 (199)
• Dimension, mm, L: 40.9
• Dimension, mm, F: 41.3
• Dimension, mm, B: 15.0
• Dimension, mm, Bx: 24.0
• Dimension, mm, E: 22.1

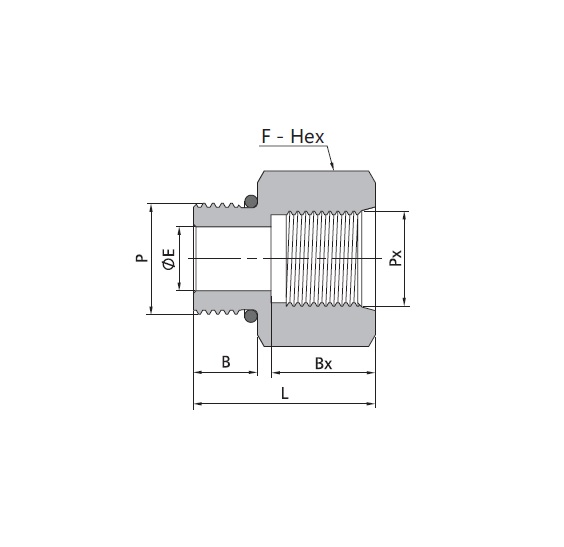

• Picture for illustration purposes only
• Download Datasheet Reducing Bush Male SAE Straight thread to Female SAE Straight thread
