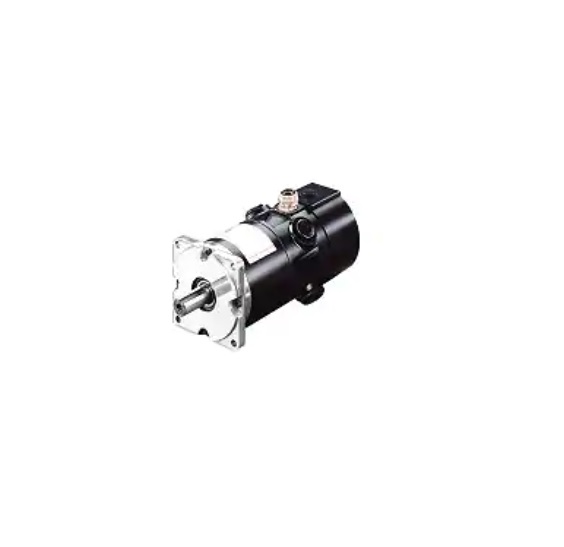

RS220KR1000 | DC Servo Motor

Using high energy magnets, RS-series DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level.

Applications:
• Factory Automation
• Life Science Diagnostic
• Textile Machines
• Radiation Hardend

Technical Overview:
• Motor Technology : brushed DC servo motor with rare earth magnets
• Frame Sizes : 39mm | 52mm | 68mm | 83mm | 97mm | 120mm
• Torque Range : 0.05 … 13 Nm
• Speed Range : 2000 … 3000 min-1
• Voltage Supply : 20.7 … 105VDC
• Number of Poles : 4
• Protection Level : IP40 (RS1-RS4) | IP54 (RS5-RS6)
• Feedback Sensors : Tacho | Encoder | Resolver
• Marking : CE (except RS6)

Features:
• Shaft
– RS1 to RS4: Smooth full shaft
– RS5 and RS6: Full keyed shaft
• 2nd Shaft End
– RS1 to RS3: possibility to mount standard tacho or encoder
– RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option
• Output Cables – 1 m without connector
• Options
– brake (RS2 to RS6)  /  – tachometer
– adaptation 2nd shaft end for encoder mounting (RS5 and RS6)

Advantages:
• High performance characteristics
• Excellent low-speed functioning
• High compactness
• Very long service life
• Rare earth magnets
• Tacho, encoder resolver and brake in option
