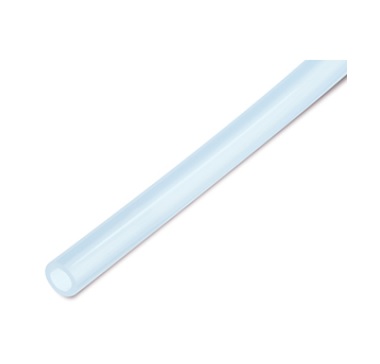

TD0425-20 | SMC Fluoropolymer Tubing
TD, Metric Size Soft Fluoropolymer Tubing
TD/TID series is a highly flexible fluorine resin tubing that was designed for installation in small spaces. The denatured PTFE fluorine resin tubing was developed to realize high flexibility, while maintaining the same heat and chemical resistance as the series, TL/TH. TD/TID series is suitable for industries that require heat and chemical resistance and conforms to Food Sanitation Law.
- Material: Denatured PTFE
- Minimum bending radius: 15mm (in case of ⌀4 x ⌀2.5)
- Maximum operating temperature: 260° C
- Conforms to the Food Sanitation Law
- 5 size variations: Metric Size ø4~ø12
Description
- Part Number: TD0425-20
- Brand: SMC
- Description: Fluoropolymer Tubing
- Tube O.D.: 4 mm
- Tube O.D.: 2.5 mm
- Maximum Operating Pressure (MPa): 1.6 @20°C
- Max. Operating Temperature: +260°C
- Fluid: Air, Inert gas
- Applicable fittings: Insert Fittings KF Series, Stainless Steel 316 Insert Fittings KFG Series, Miniature fittings M, MS Series (Hose nipple type), Fluoropolymer fitting LQ Series
- Material: Modified PTFE (Polytetrafluoroethylene)
- Color: Translucent
- Roll Length(m): 20 (66ft)
- Picture for illustration purpose only
- Download datasheet for Fluoropolymer Tubing
