06F18AC | 06F Particulate Filter
06F Particulate Filters – Compact
• Excellent water removal efficiency
• Unique deflector plate and shroud creates a swirling of the
air stream ensuring maximum water and dirt separation
• Large filter element surface guarantees low pressure drop
and increased element life
• Optional automatic float drain available
• Shown with recommended metal bowl guard
• 1/4″, 3/8″, 1/2″ ports (NPT)
Description
- Part Number: 06F18AC
- Brand: Parker
- Description: 06F Series Particulate Filters- Compact
- Supply pressure (max): 0 to 250 psig (0 to 17.2 bar)
- Operating Temperature: 0 to 80°C
- Flow Capacity: 53 scfm
- Bowl Capacity: 4.4 oz
- Sump Capacity: 1.75 oz
- 40 Micron Element Part Number: PS701P
- Bowl Type: Metal Bowl with Sight Glass
- Drain: Auto Float Drain
- Port Size: 1/4″ NPT
- Weight: 0.6 kg

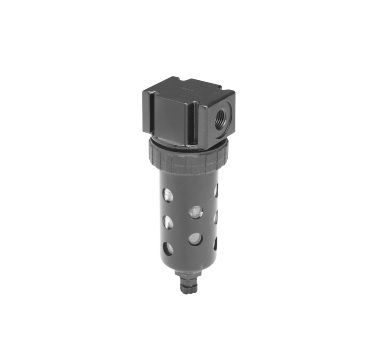

- Picture for illustration purpose only
- Download datasheet for Parker Air Preparation Products
