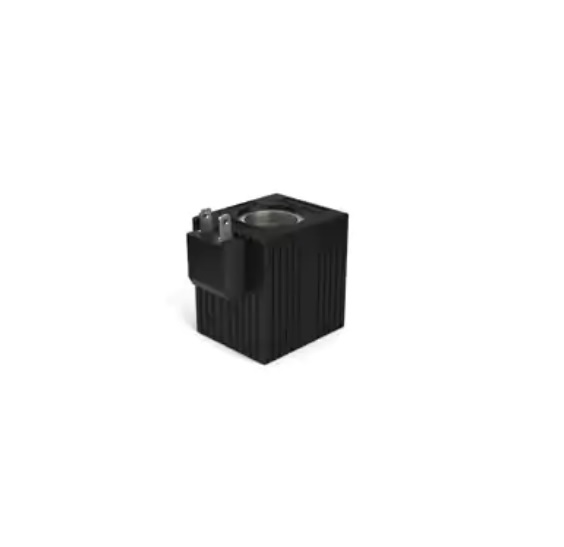

851062-024VDC | 1″ DS Coil

Parker’s proven 1 inch DS coils are ideal for use in applications that require high flow and/or pressure.  The DS coil is available in low and high watt versions for application flexibility and all coils are rated for continuous duty.  Standard voltages are 12 and 24 VDC, with termination styles including DIN connectors, Dual Spade, and Dual Leads.   DS coils are also capable of handling variable current, therefore, they can be used with proportional valves as well as on-off solenoid valves.  The DS compact glass filled nylon encapsulating material makes it resistant to moisture, caustic solutions, fungus, and temperatures from -40°C to 200°C (-40°F to 392°F.)

Parker’s 1” DS coil is a robust product that has undergone extensive testing and has a proven application performance record.  Combined with Parker’s extensive line of solenoid and proportional cartridge valves, the DS coil is ideal for the most challenging applications and industries.

Markets:
• Oil and Gas
• Material Handling Equipment
• Construction Equipment
• Agriculture Machinery
• Vocational & Municipal Equipment
• Transportation

Features/Benefits:
• Compact one piece encapsulated design
• Numerous terminals and voltages
• Heavy gauge color coded lead wire with built-in strain relief
• 200°C Class N wire standard
• U.L. recognized on most DC coils (consult factory)

Applications:
• Power Units
• Drills
• Presses
• Mixers
• Balers
• Combines
• Cranes
• Compactors

SKU: PH-851062-024VDC Category:

Description

  • Manufacturer: Parker Hannifin
  • Part Number: 851062-024VDC
  • Input Voltage: 24 VDC
  • Duty Cycle: Continous@ 100% Voltage %
  • Current: 1.79 A
  • Resistance: 13.4 Ω
  • Power Consumption: 42 W
  • Coil Type: Standard
  • Connection Type: Dual Lead Wire
  • Weight: 0.58 kg, 1.27 lb
  • Picture for illustration purposes only
  • Download Datasheet for DS Coil 1 ID
