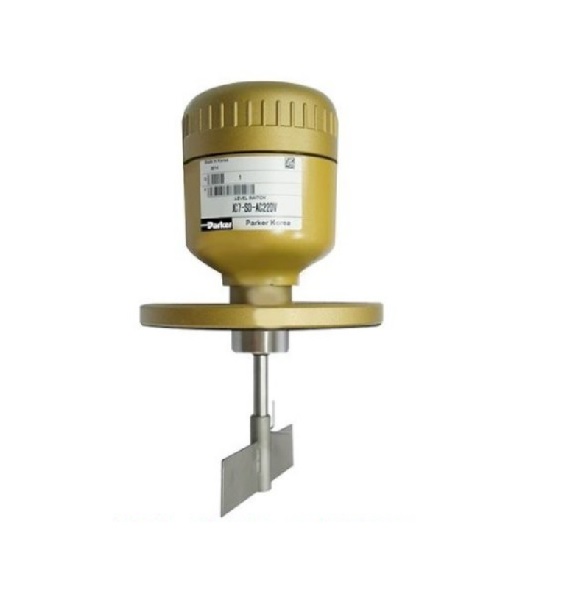

JC7-SD-AC220V | Rotary Paddle Level Switch

Features
• Using mechanical detection methods, these types are not
affected by temperatures, humidity, gases, etc. in the tank
• Made with aluminum cases, these types can be installed and
used outdoors
Operation principle
• Operated with mechanical structures, JC7 series detect the
heights of stored goods through the rotational movements of
their wings
• The wings are rotated by the motor. When resistance is
generated on the wings by stored goods, the two microswitches are operated by the built-in cam.
• The first switch turns the control circuit on/off and the next
switch turns off the motor to prevent motor overload
