KQ2H07-35S | SMC Male Connector Fitting

KQ2H07-35S | SMC Male Connector Fitting

Overview

Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi (1.0 MPa). The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
Features:

  • New Engineered Anchor Grip Seal
  • Easy Insertion
  • Quick Disconnect
  • Same Strong Hold
SKU: SMC-KQ2H07-35S Categories: ,

Description

  • Manufacturer: SMC Pneumatics
  • Part Number: KQ2H07-35S
  • Description: Male Connector Fitting
  • Body Material: Brass; Plastic
  • Hole Diameter: 4.6 mm (Min.)
  • Maximum Ambient Temperature: +60 °C
  • Minmium Ambient Temperature: -5°C
  • Nut Size: 14.29 mm (Hex.)
  • Medium: Air, Water
  • Operating Pressure: 1 MPa (Max.)
  • Overall Length: 23 mm
  • Proof Pressure: 3 MPa
  • Thread Connection: Male, 1/4 in NPT
  • Tube Connection: 1/4 in
  • Special Features: With Thread Sealant
  • Standards: RoHs Compliance, JIS B 0208 (Mounting and Nut)

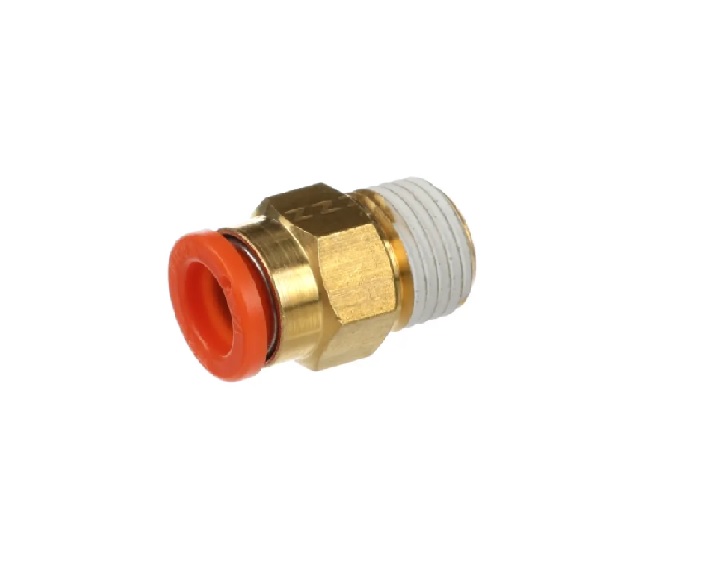

  • Picture is for illustration purposes only
  • Download SMC Catalog KQ2H UNF NPT Series
